Jacuzzi Elara Low Profile 66″ Acrylic Soaking Bathtub for Drop-In Installations with Reversible Drain

Product Features:

• Durable high-gloss acrylic material
• Ergonomic design cradles the bather in a comfortable position
• The foundation of hydrotherapy – quiet and calming
• The combination of heat and water relaxes muscles and calms the senses
• Limited lifetime manufacturer’s warranty for tub with 2 years warranty for labor and travel costs. Drilling for faucet mounting will NOT void the warranty.

Jacuzzi® Technology:

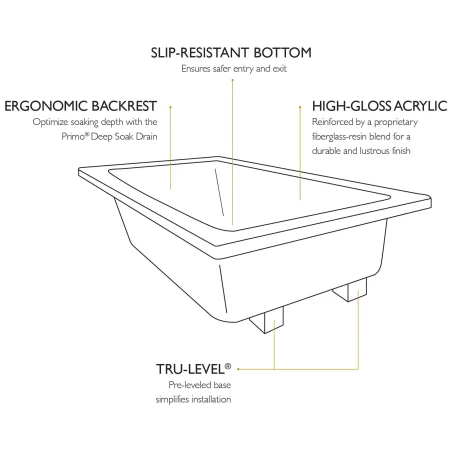

• Sleek Linear Overflow: The linear overflow offers a contemporary look to your bath while providing exceptional overflow protection.
• Tru-Level™ Base: Ultra-high density foam levelers that provide support and easy leveling to simplify installation.
• Slip-Resistant Bottom: A matte texturing technique is applied under the clear coat to create an invisible yet effective traction area.

Product Specifications:

• Overall Height: 22-1/2″ (measured from the top of tub rim to the bottom of basin)
• Overall Width: 36″ (measured from back most to front most point on outer rim)
• Overall Length: 66″ (measured from left most to right most point on outer rim)
• Basin Width (Bottom): 22″ (back to front measurement of the bottom of basin walls)
• Basin Length (Bottom): 46-1/2″ (right to left measurement of the bottom of basin walls)
• Basin Width (Top): 28″ (back to front measurement of the top of basin walls)
• Basin Length (Top): 58″ (right to left measurement of the top of basin walls)
• Water Depth: 16-1/5″ (depth of water at tub’s maximum capacity)
• Maximum Water Capacity: 81 – gallons
• Drain Location: Reversible
• Operating Gallons: 81
• Drop-In Cutout Required: 64″ x 34″

Variations:

• ELL6636BUXXXX: This model
• ELL6636BUX2CX: This model with Chromatherapy Lighting

About Jacuzzi® Jacuzzi® has become the world’s most recognized and largest selling brand of jetted / whirlpool baths and spas. In addition to the first whirlpool bath patent, Jacuzzi® has 250 worldwide patents for advancements in pump systems, jet technology, air controls and product design. This ongoing commitment to innovative product development ensures Jacuzzi’s leadership position in the industry, and sets standards the world over.
